    Battery Operated Dermatome MT-Q3

    Product NameCordless Battery Operated Dermatome


    SpecificationMT-Q3B


    Intended Use〗It is a device used for skin harvesting in various thicknesses and widths.

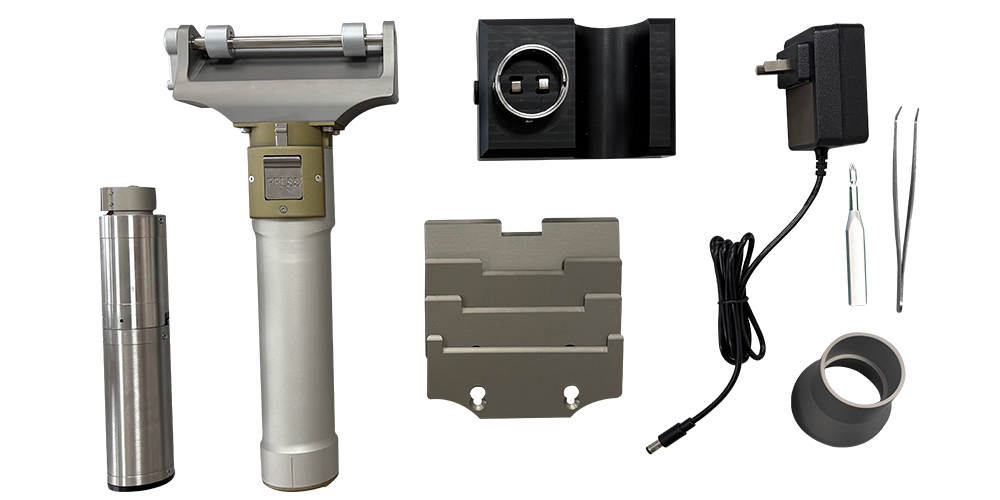

    Standard ComponentsIt consists of 1 handpiece, 1 charger,1 motor, 2 batteries, 1 screwdriver,4 width plates(25mm, 42mm, 65mm,80mm),1 tweezer ,1 sterile channel,1 box medical dermatome blades,1 autoclave case,1 transportation case.


    Special Features

    1. Strong Power: Battery operated, no need power supply. Battery Li-ion, DC12V, 1200mAh. Motor capacity: 28W. speed cutting ,it can reach 7000rpm; Smooth cutting action, virtually effortless cutting even during excision of eschar.

    2. Mechanized cutting: Compared with manual cutting,mechanized cutting that consistently produces clean,uniform grafts, increase surgery efficiency,reduce pain of patients.

    3. Precise Galibration:

    * Thickness: 0-1.2mm in 0.02 inch (0.05mm) increments.

    * Width:Width: 25mm, 42mm, 65mm,80mm. (Special size width plate can be customized according to requirements).

    4. Easy Operation, Safe and Reliable:

    * Blade can be quickly and safely inserted.

    * Battery and motor can be detached .

    * Hand held control, easy to operate; handle with contact switch design,safety to use.

    5. Low Maintenance:

    * Smooth head design facilitates easy and thorough cleaning. No lubrication required.Avoid accumulation of pollutants.

    * Various sterilization methods are applicable, such as pre-vacuum and gravity displacement steam sterilization or low temperature plasma sterilization, etc.

    Ordering Information

    Ref No.

    Description

    MT-Q3B-00-00

    Battery Dermatome(MT-Q3B)(Standard Components)

    MT-Q3B-01-00

    Battery

    MT-Q3B-02-00

    Handpiece

    MT-Q3B-03-25

    Width Plate (1inch/2.5cm)

    MT-Q3B-03-38

    Width Plate (1.5inch/3.8cm)

    MT-Q3B-03-42

    Width Plate (1.65inch/4.2cm)

    MT-Q3B-03-51

    Width Plate (2inch/5.1cm)

    MT-Q3B-04-01

    Charger

    MT-Q3B-04-02

    Motor

    MT-Q3B-05-00

    Screwdriver

    MT-Q3B-05-01

    Tweezer

    MT-Q3B-05-02

    Sterile Channel

    MT-Q3B-06-00

    Medical Dermatome Blade(1/Pc)

    MT-Q3B-06-10

    Medical Dermatome Blade(10/Box)

    MT-Q3B-07-00

    Autoclave Case

    MT-Q3B-08-00

    Transportation Case
